Replicate S3 buckets into another region

Setting up S3 bucket replication is a key method to achieve global buckets, allowing your data to be available across multiple regions.

When you replicate your S3 buckets, you continue to interact with your source bucket in its specific region.

Note: Replication in Amazon S3 does incur costs. Amazon S3 offers pricing details on their official pricing page.

What we'll be doing

By following this guide, you will achieve multi-region replication of your S3 bucket, enhancing data availability, durability, and disaster recovery capabilities.

  1. Review our existing module
  2. Create a Destination Bucket
  3. Create IAM Role and Policies for Replication
  4. Set Up Replication Configuration for S3 Bucket

Review our existing module

The first step is clone the Nitric repository and examine how the Nitric Terrraform provider provisions an S3 bucket.

git clone https://github.com/nitrictech/nitric
cd nitric

The AWS S3 module in the default Terraform provider performs the following tasks:

  1. Creates a unique ID for the S3 bucket to ensure unique naming.
  2. Provisions an S3 bucket with a unique name using the generated ID.
  3. Tags the bucket for identification.
  4. Grants S3 permission to invoke specified Lambda functions.
  5. Configures S3 bucket notifications to trigger Lambda functions based on specified events using dynamic blocks.

To begin our customization, we will start adding configuration to this module.

Create a Destination Bucket

Introduce a new variable into the aws/deploytf/.nitric/modules/bucket/variables.tf:

variable "replication_region" {
  description = "The AWS region for the replication bucket"
  type        = string
  default     = "us-west-2"
}

Now we can edit our bucket/main.tf file and introduce a provider for the replication region:

provider "aws" {
  alias  = "replication"
  region = var.replication_region

  endpoints {
    s3 = "https://s3.${var.replication_region}.amazonaws.com"
  }
}

Then we can create our new destination bucket:

resource "random_id" "destination_bucket_id" {
  byte_length = 8
}

resource "aws_s3_bucket" "destination" {
  bucket = "tf-destination-bucket-${random_id.destination_bucket_id.hex}"
  tags = {
    "x-nitric-${var.stack_id}-name" = "tf-destination-bucket-${random_id.destination_bucket_id.hex}"
    "x-nitric-${var.stack_id}-type" = "bucket"
  }
  provider = aws.replication
}

And enable versioning for both source and destination:

resource "aws_s3_bucket_versioning" "destination" {
  bucket = aws_s3_bucket.destination.id
  versioning_configuration {
    status = "Enabled"
  }
  provider = aws.replication
}

resource "aws_s3_bucket_versioning" "source" {
  bucket = aws_s3_bucket.bucket.id
  versioning_configuration {
    status = "Enabled"
  }
}

Create IAM Role and Policies for Replication

First, we need to set up an IAM policy document detailing permissions needed for S3 replication.

Note: Full documentation can be found on the Terraform registry.

data "aws_iam_policy_document" "assume_role" {
  statement {
    effect = "Allow"

    principals {
      type        = "Service"
      identifiers = ["s3.amazonaws.com"]
    }

    actions = ["sts:AssumeRole"]
  }
}

# Generate a random id for the IAM role
resource "random_id" "iam_role_id" {
  byte_length = 8
}

resource "aws_iam_role" "replication" {
  name               = "tf-iam-role-replication-${random_id.iam_role_id.hex}"
  assume_role_policy = data.aws_iam_policy_document.assume_role.json
}

data "aws_iam_policy_document" "replication" {
  statement {
    effect = "Allow"

    actions = [
      "s3:GetReplicationConfiguration",
      "s3:ListBucket",
    ]

    resources = [aws_s3_bucket.bucket.arn]
  }

  statement {
    effect = "Allow"

    actions = [
      "s3:GetObjectVersionForReplication",
      "s3:GetObjectVersionAcl",
      "s3:GetObjectVersionTagging",
    ]

    resources = ["${aws_s3_bucket.bucket.arn}/*"]
  }

  statement {
    effect = "Allow"

    actions = [
      "s3:ReplicateObject",
      "s3:ReplicateDelete",
      "s3:ReplicateTags",
    ]

    resources = ["${aws_s3_bucket.destination.arn}/*"]
  }
}

resource "aws_iam_policy" "replication" {
  name   = "tf-iam-role-policy-replication-${random_id.iam_role_id.hex}"
  policy = data.aws_iam_policy_document.replication.json
}

resource "aws_iam_role_policy_attachment" "replication" {
  role       = aws_iam_role.replication.name
  policy_arn = aws_iam_policy.replication.arn
}

Set Up Replication Configuration for S3 Bucket

Next, we set up the replication configuration for our bucket.

Note: As per the documentation, this config includes a filter so that only objects prefixed with "foo" will be replicated.

resource "aws_s3_bucket_replication_configuration" "replication" {
  depends_on = [
    aws_s3_bucket_versioning.destination,
    aws_s3_bucket_versioning.source
  ]

  role   = aws_iam_role.replication.arn
  bucket = aws_s3_bucket.bucket.id

  rule {
    id = "s3-replication-rule-${random_id.bucket_id.hex}"

    filter {
      prefix = "foo"
    }

    status = "Enabled"

    destination {
      bucket        = aws_s3_bucket.destination.arn
      storage_class = "STANDARD"
    }

    delete_marker_replication {
      status = "Enabled" # or "Disabled" based on your requirements
    }
  }
}

Building and using your updated provider

The Nitric project includes a make file that will build and install your provider as nitric/awstf@0.0.1 by default.

Run make install from the provider's root directory - nitric/cloud/aws

The provider can then be used directly in your project's stack file as follows.

# The nitric provider to use
provider: nitric/awstf@0.0.1

# The target aws region to deploy to
region: us-east-2

Note: If you don't have a stack file use the nitric stack new to create one.

You'll also need to enable beta-providers in your Nitric project by adding the following to your project's nitric.yaml file:

preview:
  - beta-providers

You can generate the Terraform code by running the following command:

nitric up

To deploy the application using Terraform, you can navigate into your Terraform stack directory and use the standard Terraform commands:

terraform init
terraform plan
terraform apply

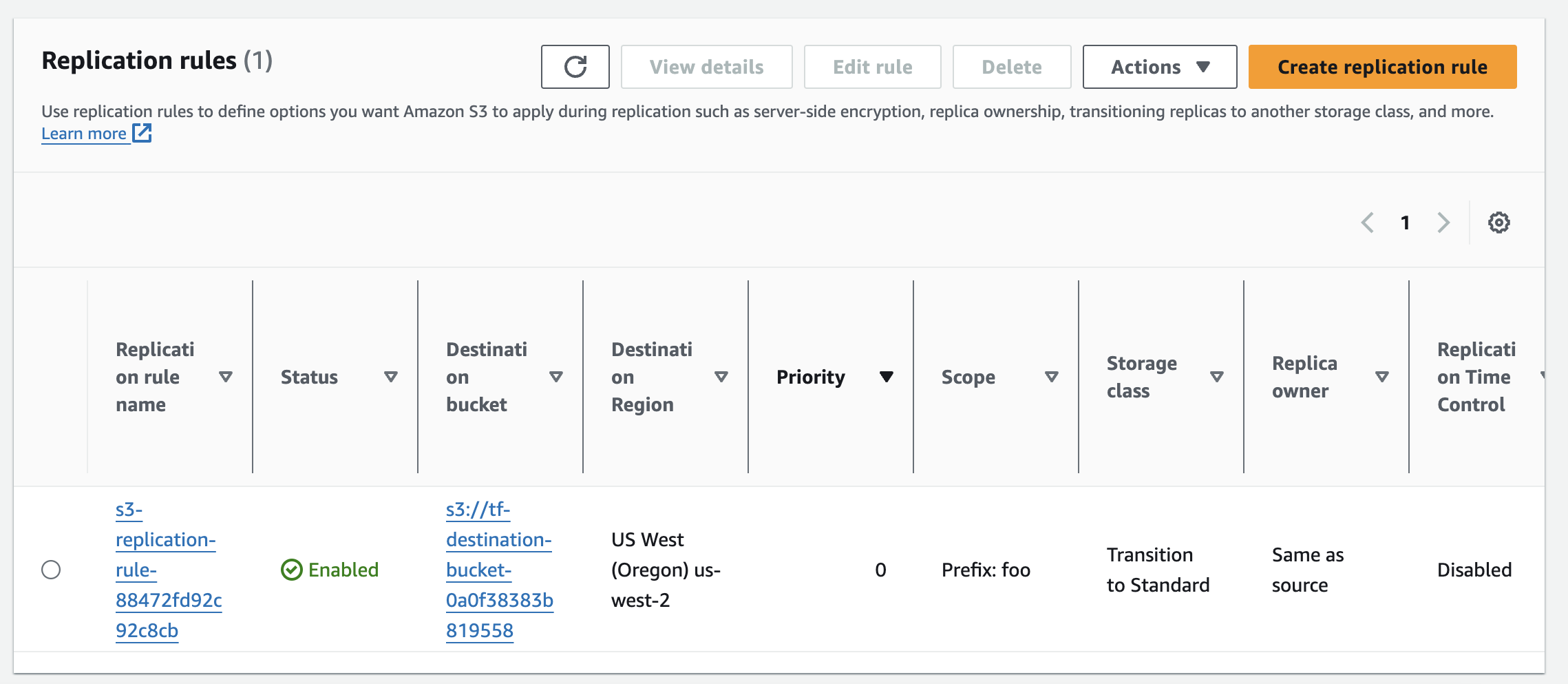

You can examine your configuration by logging into the AWS console.

aws console s3 management for replication.
